nine full gigabit ports support gigabit bandwidth access, 8 lan ports support poe power supply, the machine power is 100w, support full-load access of gigabit aps/hd cameras and run stably, support netcore cloud platform remote management, convenient operation and maintenance, preferred by street shops and micro networking.
| product model | nbr1009gpe |
| standard protocol | ieee802.3,ieee802.3u,ieee802.3z ,ieee802.3x,ieee802.1x |
| port |

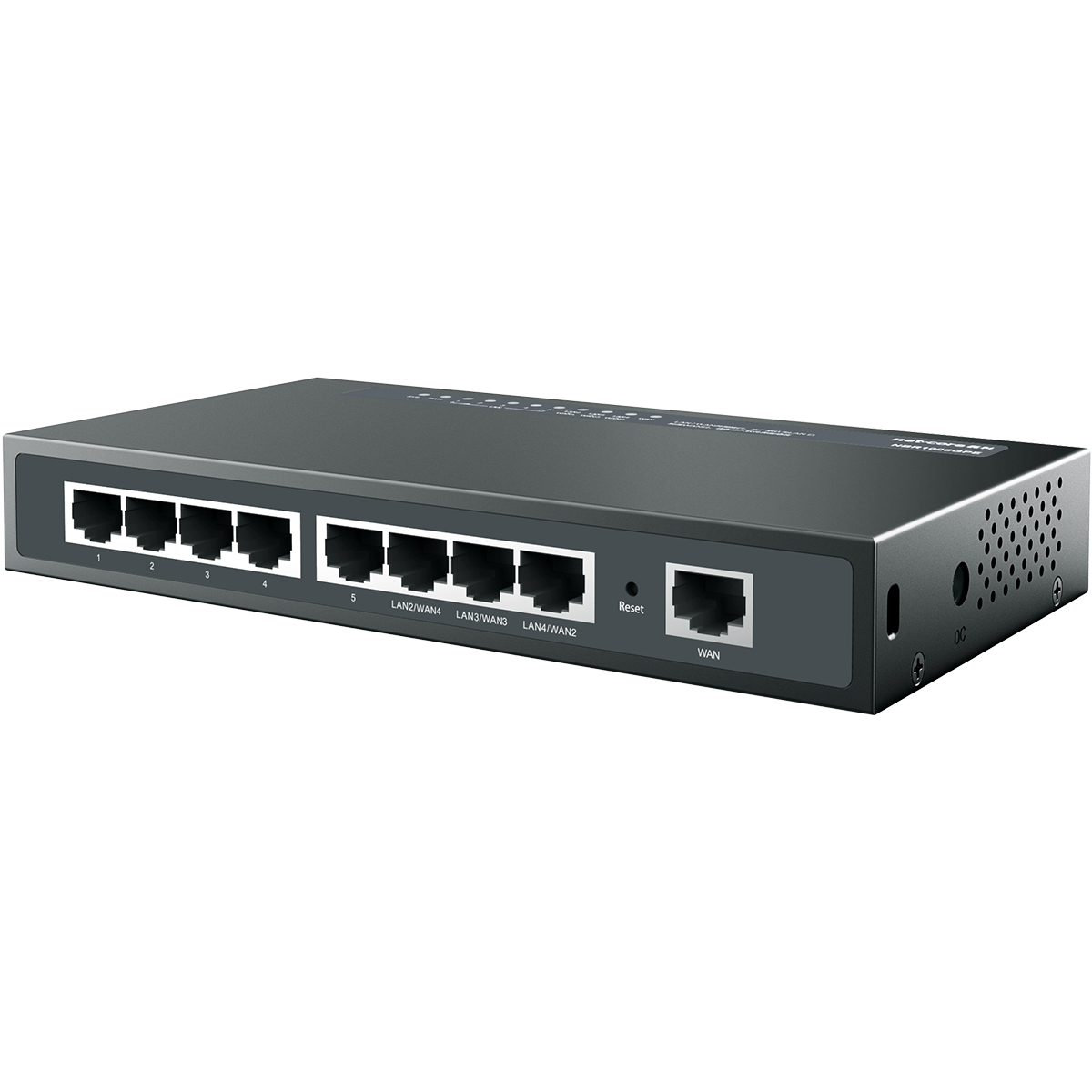

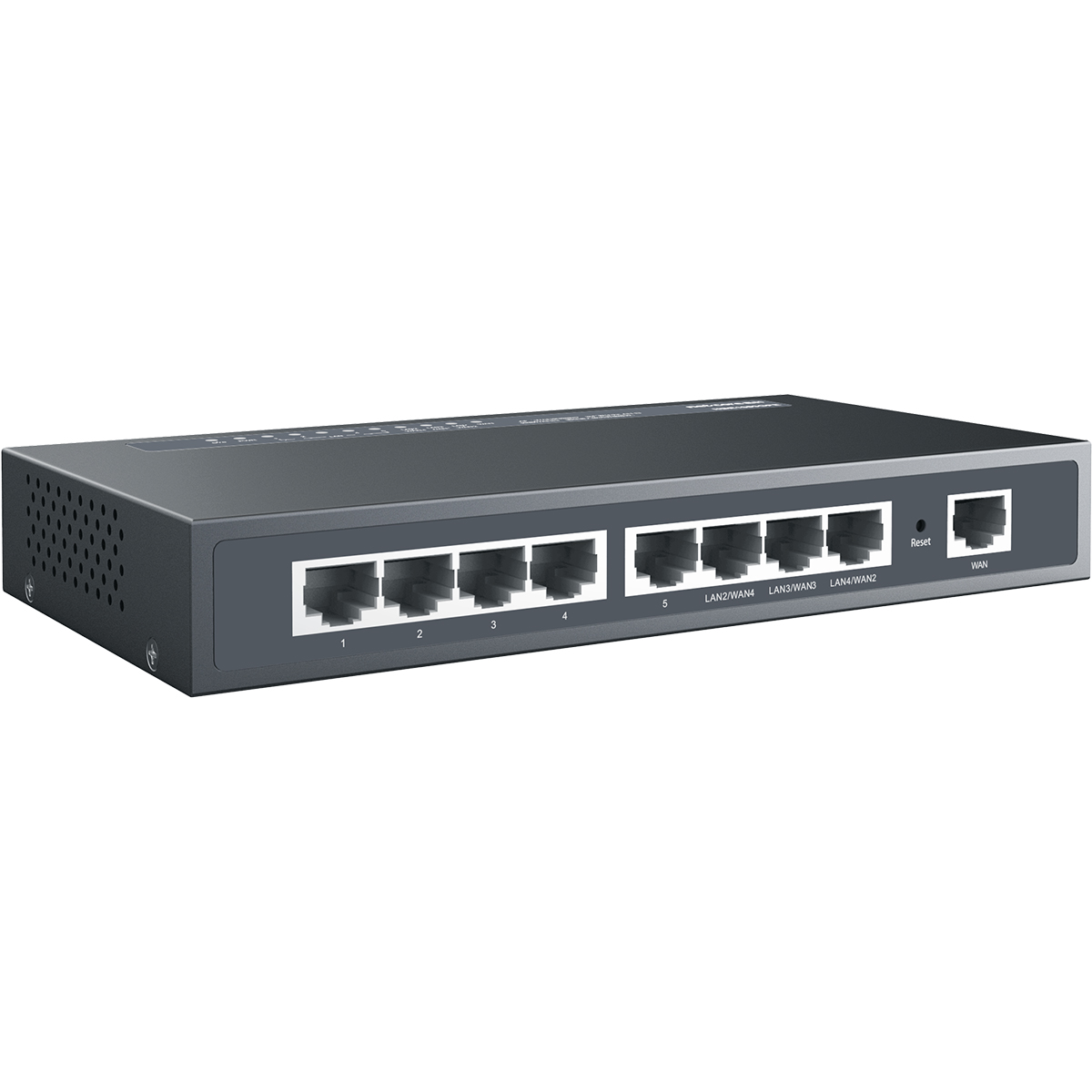

lan port（support poe）：8x10//100/100/1000m rj45 ports |
| forwarding rate | 10/100/1000mbps |
| power | machine 120w |
| cpu | 1ghz（dual core） |
| flash | 16mb |
| memory | 128mb |
| led display | pwr、sys、port status |
| button | default, push to talk |
| size | 180mm×100mm×27mm |
| power | 48v/2.5a |
| working environment |
operating temperature: 0°c ~ 40°c storage temperature: -20°c ~ 70°c operating humidity: 10% ~ 90%, non-condensing storage humidity: 5% ~ 90%, non-condensing |
| setup wizard |
quick guide expert guide |
| system status | overview state system log host monitoring real time monitoring historical monitoring app statistics qq online list interface overview |
| network settings |
extranet settings |
| ac management | ac control ap settings control ap template settings ap radio settings ap advanced settings ap device management ap settings upgrade |
| flow control multi-wire | multi-line strategy single line multi-dial intelligent flow control fixed flow control |
| group management | ip group time group port group app group mac group domain name group |
| behavior management | one-click control qq whitelist firewall rules url redirection url filtering dns filtering web access record |
| virtual private network | pptp server pptp client l2tp server l2tp client ipsec |
| advanced features | anti-secondary routing shared decipher pppoe relay port mirroring wake on lan |
| system management | system settings toolbox long ping join the cloud timed task router password firmware upgrade feature library upgrade reset backup/restore |
